Whether you are an electronics enthusiast or a seasoned engineer, understanding the capabilities and applications of the LM358 can greatly enhance your ability to design and build various circuits. In this guide, we will delve into the inner workings of the LM358, explore its key features, and provide detailed insights on how to effectively utilize it in different applications.
What is LM358?
The LM358 is a popular operational amplifier (op-amp) integrated circuit (IC) designed by Texas Instruments. It belongs to the LMx58 series, which includes various op-amps with similar functionality but different specifications. The LM358 specifically is a dual op-amp IC, meaning it contains two independent op-amps in a single package.
What is LM358 used for?
The LM358 is widely used in electronics and electrical engineering for various applications due to its versatile nature. Some common uses of the LM358 include:
- Amplification: It can be used to amplify signals from sensors, microphones, or other low-level input sources.
- Signal conditioning: The LM358 can process and condition signals to make them suitable for further processing or measurement.
- Active filters: It can be utilized to build active filters that shape the frequency response of a circuit.
- Oscillators: By connecting external components, the LM358 can generate oscillating signals for applications such as waveform generation or timing circuits.
- Comparators: The LM358 can be configured as a comparator to compare voltages and trigger actions based on specific thresholds.
How to Check LM358 IC?
To check an LM358 IC, you can follow these steps:
- Ensure proper power supply: Connect the IC to a suitable power source within the specified voltage range.
- Connect the inputs and outputs: Wire the appropriate input signals and output loads to the op-amp pins as required by your application.
- Observe the behavior: Apply input signals and observe the corresponding output signals. Check if the amplification, filtering, or other desired functions are performed correctly.
- Measure performance: Use test equipment like oscilloscopes, multimeters, or spectrum analyzers to measure the IC’s performance parameters such as gain, bandwidth, distortion, or noise levels.
How to Use LM358?
1. Understand the datasheet
Read the LM358 datasheet to familiarize yourself with its pin configuration, recommended operating conditions, and electrical characteristics.
2. Connect power supply
Connect the IC’s VCC and GND pins to a suitable power source within the specified voltage range.
3. Connect external components
Depending on your application, you may need to connect external resistors, capacitors, or other components to configure the op-amp as desired.
4. Wire the inputs and outputs
Connect your input signals to the appropriate op-amp pins (inverting or non-inverting) and connect the output pin to your load or further circuitry.
5. Test and adjust
Apply input signals and observe the output response. Adjust any external components as necessary to achieve the desired amplification, filtering, or other functions.
LM358 Models
Special Model 1: LM358DR
Introduction
LM358DR is a specific variant of the LM358 operational amplifier IC. The “DR” suffix denotes the package type, in this case, it stands for “Dual” and “Rail-to-Rail.” The LM358DR comes in a dual inline package (DIP) or surface mount package (SMD) and is designed to operate with a wide range of supply voltages, typically from 3V to 32V.
The rail-to-rail feature allows the output voltage swing to reach close to the supply voltage rails, making it suitable for applications where a wider dynamic range is required.
Datasheet
You can click here to check the datasheet of LM358DR.
PCB Symbol and Footprint
Special Model 2: LM358N
Introduction
LM358N is another variation of the LM358 operational amplifier IC. The “N” suffix represents the plastic DIP package, which is a widely used through-hole package type. Similar to other members of the LM358 series, the LM358N is a dual op-amp IC that operates over a supply voltage range of 3V to 32V.
It exhibits excellent performance characteristics such as low input offset voltage, low input bias current, and high open-loop gain. These features make the LM358N suitable for a broad range of applications in audio amplification, signal conditioning, filtering, and more.
Datasheet
You can click here to check the datasheet of LM358DR.

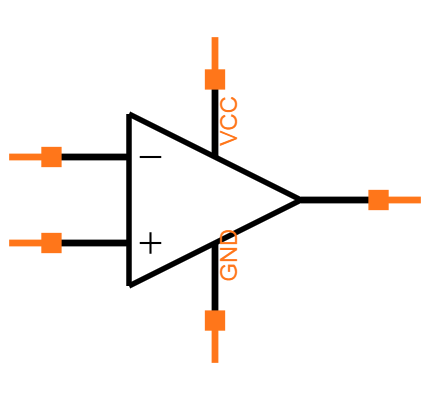

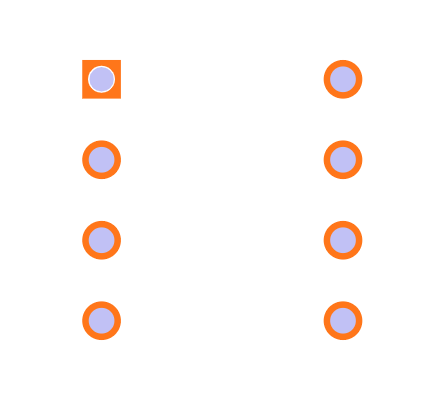

PCB Symbol and Footprint
Conclusion
In conclusion, the LM358 operational amplifier stands as a reliable and versatile IC that finds extensive use in the field of electronics. Its dual op-amp configuration, wide supply voltage range, and exceptional performance characteristics make it an ideal choice for various applications. Whether you are designing audio circuits, implementing signal conditioning, or building active filters, the LM358 provides a solid foundation for your designs.
