HT7333-A
Part Number: HT7333-A
Manufacturer/Brand: HOLTEK
Description: Voltage regulator, CMOS technology, fixed 1 output, 150mA current capability, 4 A quiescent current, SOT89 package.
Product Category: Power Management, Voltage Regulators
Package/Case: SOT89
Stock Condition: 4,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $0.225 |
10+ | $0.184 |
100+ | $0.167 |
500+ | $0.131 |
1000+ | $0.122 |
About HT7333-A
The HT7333-A is a part of the HT73XX series, which is a collection of three-terminal, low power, high voltage regulators implemented in CMOS technology. These regulators are designed to provide a stable and regulated output voltage, making them suitable for various applications such as monitors and reset circuits.
The HT7333-A specifically offers a fixed 1 output with a maximum current capability of 150mA. It features an extremely low quiescent current, typically only 4 A, ensuring minimal power consumption. With the ability to handle input voltages as high as 12V, these regulators can accommodate a wide range of power supply requirements.
One notable feature of the HT7333-A is its small dropout voltage, which allows for efficient power delivery even when the input voltage is close to the desired output voltage. This is achieved through the integration of a high-precision voltage reference, an error correction circuit, and a current limited output driver. With its compact SOT89 package, the HT7333-A is easy to integrate into various electronic designs.
Features
- Three-terminal, low power, high voltage regulator implemented in CMOS technology.
- Fixed 1 output with a maximum current capability of 150mA.
- Extremely low quiescent current of typically only 4 A, ensuring minimal power consumption.
- Can handle input voltages as high as 12V, accommodating a wide range of power supply requirements.
- Small dropout voltage for efficient power delivery even when input voltage is close to desired output voltage.
- Integration of high-precision voltage reference, error correction circuit, and current limited output driver for precise voltage regulation and protection against excessive current flow.
- Compact SOT89 package for easy integration into electronic designs.
Specifications
Product Attribute | Attribute Value |
---|---|
Category | Power Management Voltage Regulators |
Mfr | HOLTEK |
Series | HT73xx-A |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
Product Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage – Input (Max) | 12V |
Voltage – Output (Min/Fixed) | 3.3V |
Voltage Dropout (Max) | 0.9V @ 40mA |
Current – Output | 150mA |
Current – Quiescent (Iq) | 3 µA |
Operating Temperature | -25°C ~ 70°C |
Mounting Type | Surface Mount |
Package | SOT89 |
Applications
- Monitors: The HT7333-A can be used to provide a stable and regulated voltage supply to monitors, ensuring consistent performance and accurate display.
- Reset Circuits: It can be employed in reset circuits to maintain a stable voltage during power-up or power-down sequences, preventing errors or data loss.
- Battery-Powered Devices: With its low quiescent current and efficient power delivery, the HT7333-A is suitable for battery-powered devices, extending battery life and enhancing overall efficiency.
- Embedded Systems: The compact size and versatile voltage regulation capabilities make the HT7333-A ideal for integration into various embedded systems, providing reliable and stable power supply.
- Automotive Electronics: The ability to handle high input voltages and the built-in protection against excessive current flow make the HT7333-A suitable for automotive electronics applications, ensuring safe and reliable operation.
- Industrial Control Systems: The HT7333-A can be used in industrial control systems to provide a stable voltage supply for sensors, actuators, and other components, ensuring accurate and precise control.
Datasheet Download: HT7333-A Datasheet

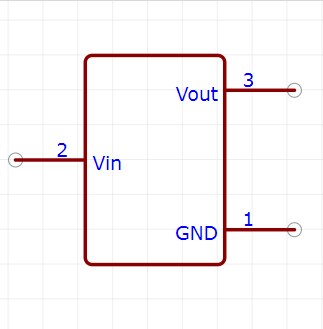

ECAD Model: PCB Symbol and Footprint
