ISM330DHCX
Part Number: ISM330DHCX
Manufacturer/Brand: ST
Description: Inertial Measurement Units iNEMO inertial module, 6-axis sensing solution, “always-on” functionality, I²C and SPI output.
Product Category: Sensors, Motion Sensors, IMUs – Inertial Measurement Units
Package/Case: LGA-14
Stock Condition: 5,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $12.02 |
10+ | $9.62 |
25+ | $8.898 |
100+ | $7.695 |
500+ | $7.214 |
About ISM330DHCX
The ISM330DHCX is an advanced system-in-package IC (SoIC) designed for Industry 4.0 applications. It incorporates a high-performance 3D digital accelerometer and 3D digital gyroscope, offering precise motion sensing capabilities. The IC interfaces are developed using CMOS technology, allowing for the design of a dedicated circuit that is finely tuned to match the characteristics of the sensing elements.
One notable feature of the ISM330DHCX is its always-on functionality, which ensures continuous monitoring and data acquisition. This makes it suitable for applications that require real-time motion sensing and environmental monitoring. The module supports both I²C and SPI output interfaces, providing flexibility for integration into various systems. This allows developers to easily interface the ISM330DHCX with microcontrollers and other devices.
Additionally, the ISM330DHCX incorporates advanced technologies such as a machine learning core and finite state technology. The machine learning core enables on-device data processing and analysis, allowing the module to perform advanced algorithms and pattern recognition. The finite state technology enables the module to transition between different operational modes based on specific conditions, optimizing power management and overall performance.
Features
- High-performance 3D digital accelerometer and 3D digital gyroscope: The ISM330DHCX incorporates precise motion sensing capabilities with its advanced accelerometer and gyroscope. This allows for accurate measurement and detection of movement in three dimensions.
- CMOS technology for dedicated circuit design: The IC interfaces of the ISM330DHCX are developed using CMOS technology, enabling the creation of a dedicated circuit. This circuit is finely tuned to match the characteristics of the sensing elements, ensuring optimal performance and accuracy.
- Always-on functionality: The ISM330DHCX is designed with an always-on feature, enabling continuous monitoring and data acquisition. This makes it well-suited for applications that require real-time motion sensing and environmental monitoring.
- I²C and SPI output interfaces: The module supports both I²C and SPI output interfaces, providing flexibility for integration into various systems. This allows for easy interfacing with microcontrollers and other devices, simplifying the integration process.
- Machine learning core: The ISM330DHCX incorporates a machine learning core, enabling on-device data processing and analysis. This allows the module to perform advanced algorithms and pattern recognition, enhancing its capabilities for intelligent data interpretation and decision-making.
- Finite state technology: The ISM330DHCX utilizes finite state technology, enabling it to transition between different operational modes based on specific conditions. This optimizes power management and overall performance, making it more efficient and adaptable.
Specifications
Product Attribute | Attribute Value |
---|---|
STMicroelectronics | |
Product Category | Sensors Motion Sensors IMUs – Inertial Measurement Units |
SMD/SMT | |
LGA-14 | |
6-axis | |
SPI, I2C | |
Digital | |
2 g, 4 g, 8 g, 16 g | |
16 bit | |
0.488 mg/LSB | |
– 40 C | |
+ 105 C | |
1.7 V | |
3.6 V | |
361 uA | |
Reel | |
Cut Tape | |
MouseReel | |
Brand | STMicroelectronics |
Moisture Sensitive | Yes |
Product Type | IMUs – Inertial Measurement Units |
Sensing Axis | X, Y, Z |
Series | ISM330DLC |
Subcategory | Sensors |
Tradename | iNemo |
Part # Aliases | ISM330DHCX |
Unit Weight | 0.000494 oz |
Applications
- Industry 4.0: The ISM330DHCX is specifically designed for Industry 4.0 applications. Its high-performance motion sensing capabilities and advanced features make it suitable for use in industrial automation, robotics, and smart manufacturing systems.
- Wearables and IoT devices: With its compact size and versatile interface options, the ISM330DHCX can be integrated into wearable devices such as fitness trackers, smartwatches, and virtual reality headsets. It can also be used in various Internet of Things (IoT) applications, including smart home devices and environmental monitoring systems.
- Robotics and drones: The precise motion sensing capabilities of the ISM330DHCX make it ideal for use in robotics and drones. It can provide accurate data on movement and orientation, enabling precise control and navigation in autonomous systems.
Datasheet Download: ISM330DHCX Datasheet

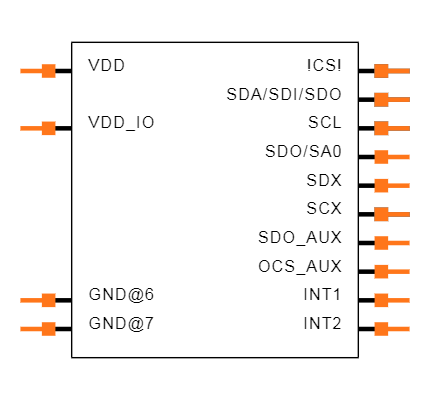

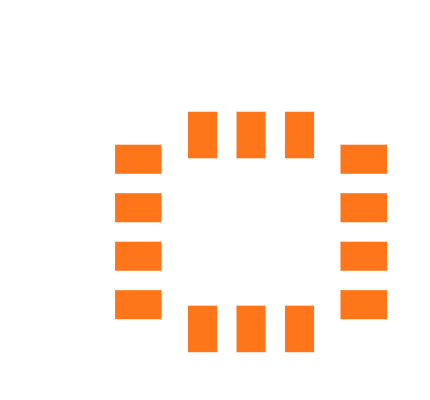

ECAD Model: PCB Symbol and Footprint
