LM2596SX-ADJ/NOPB
Part Number: LM2596SX-ADJ/NOPB
Manufacturer/Brand: TI
Description: 32-bit high-performance ARM Cortex-M7 microcontroller with 2MB flash, 480MHz clock speed, and 100-pin LQFP package.
Product Category: Switching Voltage Regulators
Package/Case: TO263-5
Stock Condition: 4,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $6.54 |
10+ | $5.56 |
100+ | $4.82 |
250+ | $4.57 |
500+ | $4.09 |
1000+ | $3.45 |
About LM2596SX-ADJ/NOPB
The LM2596SX-ADJ/NOPB is a versatile switching voltage regulator chip from Texas Instruments. As part of the SIMPLE SWITCHER® series, it offers efficient step-down regulation with a low component count. This chip operates within a wide voltage range of 4.5V to 40V, making it suitable for diverse power supply applications.
With a frequency of 150 kHz, the LM2596SX-ADJ/NOPB ensures efficient voltage conversion. It features an adjustable positive output voltage, starting from 1.2V, and can deliver a maximum current of 3A. Packaged in TO263-5 (D²Pak) format with five leads and a tab, it provides ease of installation.
Acting as a DC-to-DC converter and switching regulator, this chip enables the conversion of input voltages ranging from 4.5V to 40V into lower output voltages between 1.2V and 37V. Its versatility and stable power supply capabilities make it an excellent choice for various electronic devices.
Features
- Wide input voltage range: It can operate within a range of 4.5V to 40V, providing flexibility for different power supply requirements.
- Efficient voltage conversion: With a frequency of 150 kHz, it ensures efficient step-down regulation, allowing for effective voltage conversion.
- Adjustable output voltage: The chip offers an adjustable positive output voltage, starting from 1.2V, providing versatility for different applications.
- High output current: It can deliver a maximum current of 3A, making it suitable for powering various electronic devices.
- Compact packaging: The chip is packaged in TO263-5 (D²Pak) format, which is easy to install and provides stability.
Specifications
Product Attribute | Attribute Value |
---|---|
Texas Instruments | |
Product Category | Switching Voltage Regulators |
SMD/SMT | |
TO263-5 | |
Buck | |
1.2 V to 37 V | |
3 A | |
1 Output | |
4.5 V | |
40 V | |
150 kHz | |
– 40 C | |
+ 125 C | |
LM2596 | |
Reel | |
Cut Tape | |
MouseReel | |
Brand | Texas Instruments |
Development Kit | LM2596S-ADJEVM |
Input Voltage | 4.5 V to 40 V |
Moisture Sensitive | Yes |
Operating Supply Current | 5 mA |
Product Type | Switching Voltage Regulators |
Shutdown | Shutdown |
Supply Voltage – Min | 4.5 V |
Tradename | SIMPLE SWITCHER |
Type | Step Down Voltage Regulator |
Unit Weight | 0.056128 oz |
Applications
- Power supply for electronic devices: The LM2596SX-ADJ/NOPB can be used as a reliable and efficient power supply solution for a wide range of electronic devices, such as smartphones, tablets, IoT devices, and portable electronics.
- Battery charging: It can be utilized in battery charging applications, providing stable and regulated charging voltage for batteries in various devices.
- Automotive applications: The chip’s wide input voltage range and stable power supply capabilities make it suitable for automotive applications, including powering LED lights, sensors, and other electronic components in vehicles.
- Industrial applications: It can be used in industrial equipment that requires stable and adjustable power supply, such as control systems, motor drives, and automation devices.
Datasheet Download: LM2596SX-ADJ/NOPB Datasheet

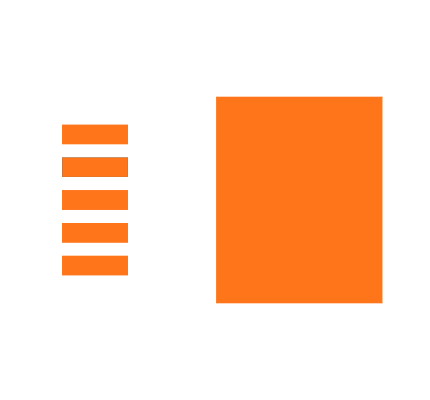

ECAD Model: PCB Symbol and Footprint
