LM358DR
Part Number: LM358DR
Manufacturer/Brand: TI
Description: Operational amplifier, ±16V or 32V Voltage, 20nA Current, 700kHz bandwidth, SOP8 package.
Product Category: Integrated Circuits, Amplifiers, Operational Amplifiers – Op Amps

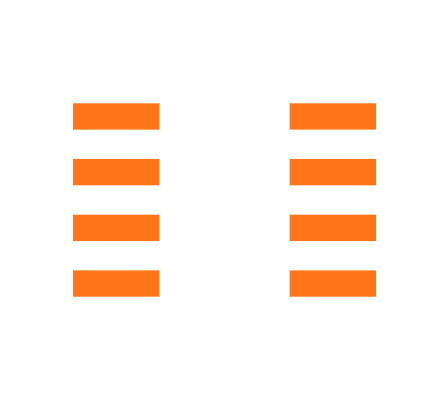

Package/Case: SOP8
Stock Condition: 9,500, Can Ship in 48 Hours
Minimum: 450 Multiple: 450 Price For: Each
| Quantity | Price |
|---|---|
| 1+ | $0.47 |
| 10+ | $0.354 |
| 100+ | $0.201 |
| 500+ | $0.133 |
| 1000+ | $0.102 |
About LM358DR
The LM358DR is a general-purpose amplifier that provides two independent op-amp circuits in a SOP8 package. This allows for flexibility in designing electronic circuits that require amplification. The IC operates on a wide range of voltages, with a supply voltage of ±16V or 32V, making it suitable for various applications.
With a frequency response of 700kHz, the LM358DR offers a good bandwidth for amplification purposes. It is capable of providing high gain and frequency compensation to ensure accurate signal amplification. The IC also has low input bias current, consuming only 20nA, which is beneficial for low power applications where energy efficiency is crucial.
Furthermore, the LM358DR is compliant with the ROHS directive, indicating that it meets environmental standards by restricting the use of hazardous substances. This makes it a reliable and environmentally friendly choice for electronic designs.
Features
- Dual Op-Amp: The LM358DR provides two independent op-amp circuits in a single package, allowing for flexibility in circuit design.
- Wide Operating Voltage Range: The IC can operate on a wide range of voltages, with a supply voltage of ±16V or 32V, making it suitable for various applications.
- Good Bandwidth: With a frequency response of 700kHz, the LM358DR offers a good bandwidth for amplification purposes.
- High Gain and Frequency Compensation: The IC is capable of providing high gain and frequency compensation, ensuring accurate signal amplification.
- Low Input Bias Current: The LM358DR has low input bias current, consuming only 20nA. This is beneficial for low power applications where energy efficiency is crucial.
- ROHS Compliant: The LM358DR is compliant with the ROHS directive, indicating that it meets environmental standards by restricting the use of hazardous substances.
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category | Integrated Circuits Amplifiers Operational Amplifiers – Op Amps |
| SMD/SMT | |
| SOP8 | |
| 2 Channel | |
| 32 V | |
| 700 kHz | |
| 20 mA | |
| 300 mV/us | |
| 7 mV | |
| 3 V | |
| 0 C | |
| + 70 C | |
| 250 nA | |
| 350 uA | |
| No Shutdown | |
| 80 dB | |
| 40 nV/sqrt Hz | |
| LM358 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type | High Gain Amplifier |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V |
| Features | Standard Amps |
| Height | 27 mm |
| Input Type | Rail-to-Rail |
| Length | 4.9 mm |
| Maximum Dual Supply Voltage | +/- 16 V |
| Minimum Dual Supply Voltage | +/- 1.5 V |
| Operating Supply Voltage | 3 V to 32 V, +/- 1.5 V to +/- 16 V |
| Product | Operational Amplifiers |
| Product Type | Op Amps – Operational Amplifiers |
| Supply Type | Single, Dual |
| Technology | Bipolar |
| Common Mode Voltage | Negative Rail to Positive Rail – 1.5 V |
| Voltage Gain dB | 100 dB |
| Width | 3.91 mm |
| Unit Weight | 0.006702 oz |
Applications
- Audio Amplification: The LM358DR can be used in audio amplifiers to amplify low-level audio signals.
- Signal Conditioning: It can be used for signal conditioning in various electronic systems, such as filtering, amplifying, and adjusting the amplitude of signals.
- Sensor Interface: The IC can be used to interface with sensors, amplifying and conditioning the sensor output signals for further processing.
- Instrumentation Amplifiers: It can be used in instrumentation amplifier circuits to accurately amplify small differential signals, commonly used in measurement and control systems.
- Voltage Comparators: The LM358DR can be used as voltage comparators in applications such as overvoltage protection, level detection, and voltage monitoring.
