LMR36015ARNX
Part Number: LMR36015ARNX
Manufacturer/Brand: TI
Description: High-quality Buck Switching Regulator IC, 1.5A capacity, VQFN-12 package.
Product Category: Integrated Circuits, Power Management ICs, DC DC Switching Regulators
Package/Case: VQFN-12
Stock Condition: 3,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $1.697 |
100+ | $1.487 |
250+ | $1.402 |
1000+ | $0.840 |
About LMR36015ARNX
The LMR36015ARNX is a buck-switching regulator integrated circuit (IC) that offers positive adjustable voltage with a single output of 1V. It is designed to provide efficient power conversion in a compact package, making it suitable for various applications. The IC features an ultra-small synchronous step-down converter that can handle input voltages ranging from 4.2V to 60V and deliver a maximum output current of 1.5A.
One key feature is its wide input voltage range, allowing it to handle a wide variety of power sources. This makes it suitable for use in battery-powered applications as well as those powered by traditional AC sources. Additionally, the IC offers adjustable output voltage, providing flexibility in meeting specific power requirements. Its small form factor and high efficiency ensure minimal power loss and enable space-saving designs in tight applications.
With its VQFN-12 package and operating temperature range of -40 to 150 degrees Celsius, the LMR36015ARNX offers versatility and reliable performance in a range of environments. The LMR36015ARNX has several notable features that contribute to its appeal.
Features
- Wide input voltage range: The LMR36015ARNX can handle input voltages ranging from 4.2V to 60V, making it suitable for a wide variety of power sources.
- Adjustable output voltage: The IC offers adjustable output voltage, allowing for flexibility in meeting specific power requirements.
- High efficiency: The LMR36015ARNX is designed to provide efficient power conversion, ensuring minimal power loss.
- Compact package: The IC features an ultra-small synchronous step-down converter, making it suitable for applications with limited space.
- Maximum output current of 1.5A: The IC can deliver a maximum output current of 1.5A, allowing it to power devices with moderate power requirements.
- VQFN-12 package: The LMR36015ARNX is packaged in a VQFN-12 package, which offers a balance between size and ease of soldering.
- Wide operating temperature range: The IC can operate within a temperature range of -40 to 150 degrees Celsius, making it suitable for a range of environments.
Specifications
Product Attribute | Attribute Value |
---|---|
TI | |
Product Category | Integrated Circuits Power Management ICs DC DC Switching Regulators |
SMD/SMT | |
VQFN-12 | |
Buck | |
Adjustable | |
1.5 A | |
1 Output | |
4.2 V | |
60 V | |
26 uA | |
400 kHz | |
– 40 C | |
+ 150 C | |
LMR36015 | |
Reel | |
Brand | Texas Instruments |
Input Voltage | 4.2 V to 60 V |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Shutdown | Shutdown |
Subcategory | Power Management ICs |
Supply Voltage – Min | 4.2 V |
Applications
- Battery-powered applications: The wide input voltage range and adjustable output voltage make it suitable for various battery-powered devices, such as portable electronics and wireless devices.
- Traditional AC-powered applications: The wide input voltage range allows the IC to be used in applications powered by traditional AC sources, such as home appliances and industrial equipment.
- Automotive applications: The wide operating temperature range and reliable performance make the IC suitable for automotive applications, such as in-vehicle electronics and power management systems.
- Industrial applications: The versatility and wide input voltage range of the IC make it suitable for various industrial applications, such as industrial automation and power distribution systems.
Datasheet Download: LMR36015ARNX Datasheet

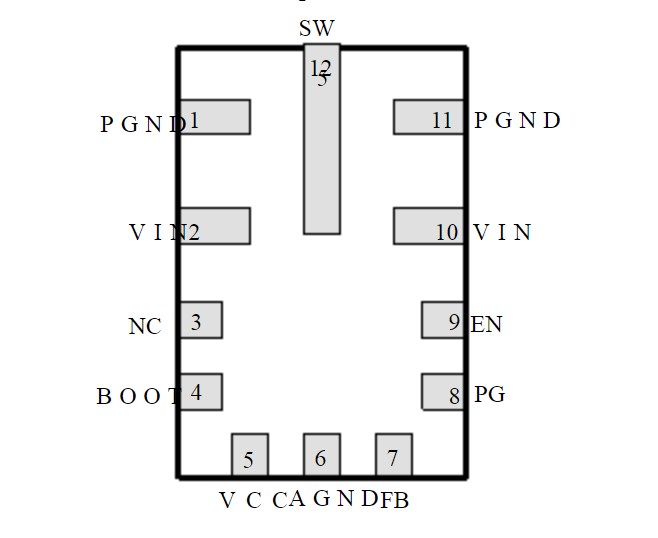

ECAD Model: PCB Symbol and Footprint
