LT3080EMS8E-1#PBF
Part Number: LT3080EMS8E-1#PBF
Manufacturer/Brand: Analog Devices
Description: Linear voltage regulator, Adjustable positive output, 1.1A Current handling capability, 0V to 36V Input voltage, MSOP8 Package.
Product Category: PMIC – Power Management ICs, LDO Voltage Regulators
Package/Case: MSOP8
Stock Condition: 7,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $6.63 |
10+ | $5.66 |
100+ | $4.85 |
500+ | $4.26 |
1000+ | $3.60 |
About LT3080EMS8E-1#PBF
The LT3080EMS8E-1#PBF is a versatile linear voltage regulator IC designed to provide precise power management solutions. With its adjustable positive output and maximum current handling capability of 1.1A, this IC offers flexibility for various applications. It comes in an MSOP8 package, ensuring compactness and ease of integration into different circuit designs.
One notable feature of the LT3080EMS8E-1#PBF is its wide input voltage range of 0V to 36V, allowing it to accommodate diverse power supply requirements. It operates as a low dropout voltage (LDO) regulator, providing stable performance even when the input voltage is close to the desired output voltage.
In addition to its adjustable output capabilities, the LT3080EMS8E-1#PBF exhibits impressive noise rejection characteristics with a 75dB attenuation at 120Hz and a 20dB attenuation at 1MHz. These features make it suitable for applications that require clean and reliable power. Furthermore, the LT3080EMS8E-1#PBF is compliant with ROHS standards, ensuring it meets environmental regulations concerning hazardous substances.
Features
- Adjustable Positive Output: The LT3080EMS8E-1#PBF offers an adjustable positive output, allowing for flexibility in voltage regulation according to specific application requirements.
- Maximum Current Handling: This IC can handle a maximum current of 1.1A, making it suitable for powering a wide range of electronic components and systems.
- Wide Input Voltage Range: With an input voltage range of 0V to 36V, the LT3080EMS8E-1#PBF can accommodate diverse power supply requirements, providing versatility in application usage.
- Low Dropout Voltage Regulation: Operating as a low dropout voltage (LDO) regulator, this IC provides stable performance even when the input voltage is close to the desired output voltage. It ensures reliable voltage regulation with minimal power loss.
- Impressive Noise Rejection: The LT3080EMS8E-1#PBF exhibits excellent noise rejection characteristics, with a 75dB attenuation at 120Hz and a 20dB attenuation at 1MHz. This feature enables the device to deliver clean and reliable power, making it suitable for applications that require high-quality voltage regulation.
- ROHS Compliance: The LT3080EMS8E-1#PBF meets ROHS standards, ensuring it adheres to environmental regulations concerning hazardous substances. It promotes eco-friendly practices and compliance with industry standards.
Specifications
Product Attribute | Attribute Value |
---|---|
Analog Devices Inc. | |
Product Category | LDO Voltage Regulators |
SMD/SMT | |
MSOP8 | |
0 V to 36 V | |
1.1 A | |
1 Output | |
Positive | |
1.2 V | |
36 V | |
75 dB | |
Adjustable | |
– 40 C | |
+ 125 C | |
350 mV | |
LT3080-1 | |
Tube | |
Brand | Analog Devices |
Development Kit | DC1368A |
Dropout Voltage – Max | 500 mV |
Line Regulation | 0.003 mV/V |
Load Regulation | 27.5 mV |
Operating Supply Current | 300 uA |
Output Voltage Range | 0 V to 36 V |
Product | Linear Regulators |
Product Type | LDO Voltage Regulators |
Subcategory | PMIC – Power Management ICs |
Type | Current Source Reference |
Voltage Regulation Accuracy | 1 % |
Unit Weight | 0.004339 oz |
Applications
- Consumer Electronics: The adjustable output and stable performance of the LT3080EMS8E-1#PBF make it well-suited for consumer electronic devices such as smartphones, tablets, and portable audio players. It provides precise and efficient voltage regulation for improved device performance.
- Industrial Automation: In industrial automation systems, this IC can be utilized to regulate voltages for control modules, sensors, and actuators. Its stability and versatility make it a reliable choice for applications that require accurate power management.
- Telecommunications: The LT3080EMS8E-1#PBF is suitable for telecommunications systems, including routers, switches, and wireless access points. Its adjustable output and noise rejection capabilities ensure clean and reliable power delivery, enabling efficient communication.
- Renewable Energy Systems: With its wide input voltage range and stable performance, this IC can be applied in renewable energy systems such as solar power and wind turbines. It assists in regulating voltage outputs and maximizing energy conversion efficiency.
Datasheet Download: LT3080EMS8E-1#PBF Datasheet

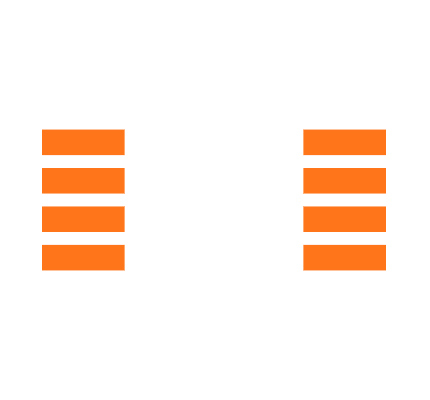

ECAD Model: PCB Symbol and Footprint
