MAX31856MUD+T
Part Number: MAX31856MUD+T
Manufacturer/Brand: MAXIM
Description: Sensor interface, Linearization capabilities, 3.6V Voltage, 1.2mA Power consumption, ±2°C Accuracy, TSSOP14 Package.
Product Category: Sensor Interface
Package/Case: TSSOP14
Stock Condition: 7,500, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $10.06 |
10+ | $9.09 |
100+ | $7.53 |
500+ | $6.56 |
1000+ | $6.34 |
About MAX31856MUD+T
The MAX31856MUD+T is a highly accurate and versatile sensor interface precision thermocouple to digital converter with linearization capabilities. This IC, packaged in a TSSOP14 form factor, is specifically designed for converting signals from various types of thermocouples into digital output. It operates at a voltage of 3.6V and has a low power consumption of 1.2mA, making it suitable for power-sensitive applications.
Featuring an SPI interface, the MAX31856MUD+T enables seamless communication with microcontrollers or other devices. Its specialized ADC/DAC functionality ensures precise temperature measurements with an accuracy of ±2°C. With a wide temperature range of -55°C to 125°C, this converter can handle a broad spectrum of thermal environments.
In terms of compliance, the MAX31856MUD+T meets RoHS standards, ensuring it adheres to environmental regulations. Its compact TSSOP14 package makes it convenient for integration into various systems, especially those with space constraints. Overall, this temperature sensor IC offers exceptional performance, reliability, and versatility for applications requiring accurate temperature measurements.
Features
- Precision Thermocouple to Digital Conversion: The MAX31856MUD+T is specifically designed for converting signals from various types of thermocouples into digital output. This ensures accurate and reliable temperature measurements.
- Low Power Consumption: With a power consumption of only 1.2mA, this IC is suitable for power-sensitive applications where energy efficiency is crucial.
- Wide Temperature Range: The MAX31856MUD+T can handle a broad spectrum of thermal environments with its wide temperature range of -55°C to 125°C, making it suitable for both high and low-temperature applications.
- SPI Interface: Featuring an SPI interface, this converter enables seamless communication with microcontrollers or other devices, facilitating easy integration into existing systems.
- Specialized ADC/DAC Functionality: The MAX31856MUD+T incorporates specialized ADC/DAC functionality, ensuring precise temperature measurements with an accuracy of ±2°C. This enhances the reliability and accuracy of temperature readings.
Specifications
Product Attribute | Attribute Value |
---|---|
Maxim Integrated | |
Product Category | Sensor Interface |
TSSOP14 | |
Reel | |
Cut Tape | |
MouseReel | |
Brand | Maxim Integrated |
Product Type | Sensor Interface |
Series | MAX31856 |
Subcategory | Interface ICs |
Unit Weight | 0.013742 oz |
Applications
- Industrial Control Systems: The MAX31856MUD+T can be used in industrial control systems to accurately measure temperatures in manufacturing processes, HVAC systems, and thermal management systems.
- Medical Equipment: It can be integrated into medical equipment, such as incubators, sterilizers, and laboratory instruments, to ensure precise temperature monitoring and control.
- Automotive Applications: The wide temperature range and high accuracy of the MAX31856MUD+T make it suitable for automotive applications, including engine monitoring, exhaust systems, and climate control.
- Consumer Electronics: This temperature sensor IC can be used in consumer electronics, such as smart thermostats, home automation systems, and appliances, to provide accurate temperature measurements and control.
- Energy Management Systems: The low power consumption of the MAX31856MUD+T makes it ideal for energy management systems, where it can monitor and control temperatures in power plants, renewable energy systems, and smart grids.
Datasheet Download: MAX31856MUD+T Datasheet

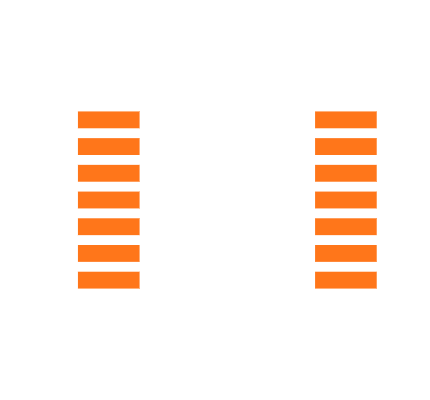

ECAD Model: PCB Symbol and Footprint
