MMBT3906LT1G
Part Number: MMBT3906LT1G
Manufacturer/Brand: Onsemi
Description: PNP bipolar transistor, 40V Operate voltage, 200mA Current, 300mW Power dissipation, SOT23 Package.
Product Category: Transistors, Bipolar Transistors – BJT
Package/Case: SOT123
Stock Condition: 7,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $0.12 |
10+ | $0.112 |
100+ | $0.061 |
500+ | $0.038 |
1000+ | $0.026 |
About MMBT3906LT1G
The MMBT3906LT1G is a PNP bipolar transistor that operates at 40V and handles a current of 200mA. With a power dissipation rating of 300mW, this transistor offers reliable performance. It comes in a compact SOT23 surface mount package, making it suitable for integration into various electronic projects.
This general-purpose transistor belongs to the MMBT3906L series and is made of silicon. Its versatile nature allows it to be used in a wide range of applications. The transistor has a collector-emitter voltage of -40VDC and a collector-base voltage of -40VDC, providing flexibility in circuit design.
With its bipolar junction transistor (BJT) configuration, the MMBT3906LT1G offers excellent performance characteristics. It has a maximum frequency of operation of 250MHz, making it suitable for high-frequency applications. Overall, this PNP transistor provides a reliable solution for general-purpose amplification and switching tasks in electronic circuits.
Features
- PNP bipolar transistor: The MMBT3906LT1G is a PNP transistor, which means it has a positive-negative-positive configuration. This allows for specific circuit design and compatibility with other components.
- Voltage rating: This transistor operates at a voltage rating of 40V, allowing it to handle moderate power requirements in electronic circuits.
- Current handling capacity: With a current handling capacity of 200mA, the MMBT3906LT1G can handle a range of current flows, making it suitable for various applications.
- Power dissipation: The transistor has a power dissipation rating of 300mW, ensuring reliable performance and preventing overheating.
- Compact package: The SOT23 surface mount package makes the MMBT3906LT1G suitable for integration into compact electronic projects, saving space and allowing for easier installation.
Specifications
Product Attribute | Attribute Value |
---|---|
Onsemi | |
Product Category | Bipolar Transistors – BJT |
SMD/SMT | |
SOT23 | |
PNP | |
Single | |
40 V | |
40 V | |
5 V | |
400 mV | |
200 mA | |
225 mW | |
250 MHz | |
– 55 C | |
+ 150 C | |
MMBT3906L | |
Reel | |
Cut Tape | |
MouseReel | |
Brand | Onsemi |
Continuous Collector Current | – 200 mA |
DC Collector/Base Gain hfe Min | 60 |
Height | 0.94 mm |
Length | 2.9 mm |
Product Type | BJTs – Bipolar Transistors |
Subcategory | Transistors |
Technology | Si |
Width | 1.3 mm |
Unit Weight | 0.001058 oz |
Applications
- General-purpose amplification: Its versatile nature makes it suitable for general-purpose amplification tasks in electronic circuits. It can be used in audio amplifiers, signal amplification stages, and other similar applications.
- Switching tasks: The transistor’s ability to handle moderate current flows makes it suitable for switching tasks in electronic circuits. It can be used in logic gates, digital switches, and other switching applications.
- High-frequency applications: With a maximum frequency of operation of 250MHz, the MMBT3906LT1G is suitable for high-frequency applications. It can be used in RF amplifiers, oscillators, and other high-frequency circuits.
- Integrated circuits: The compact SOT23 package and reliable performance make it suitable for integration into integrated circuits (ICs). It can be used in ICs for various purposes, such as voltage regulation and signal processing.
- Consumer electronics: It can be used in consumer electronic devices, such as smartphones, tablets, and portable audio players. It can help amplify signals, switch between different functions, and perform other tasks in these devices.
Datasheet Download: MMBT3906LT1G Datasheet

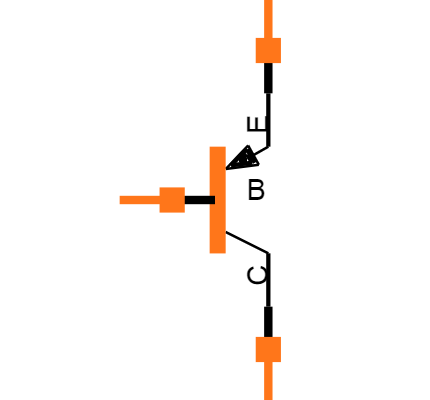

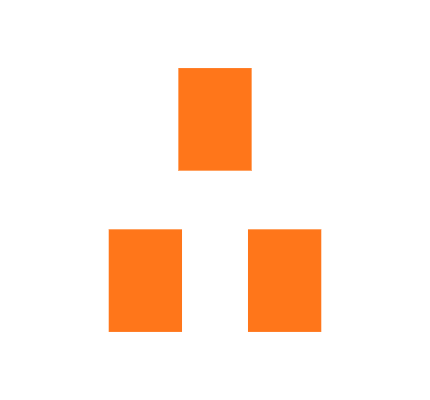

ECAD Model: PCB Symbol and Footprint
