MP1584EN-LF-Z
Part Number: MP1584EN-LF-Z
Manufacturer/Brand: MPS
Description: Buck switching regulator IC, 3A Output current, 4.5V to 28V Input voltage, 1.5MHz Switching frequency, SOP8 Package.
Product Category: PMIC – Power Management ICs, Switching Voltage Regulators
Package/Case: SOP8
Stock Condition: 3,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $2.91 |
10+ | $2.51 |
100+ | $2.14 |
500+ | $1.82 |
1000+ | $1.55 |
About MP1584EN-LF-Z
The MP1584EN-LF-Z is a highly efficient buck switching regulator IC designed for various applications. It can deliver up to 3A of continuous output current. With its compact SOP8 package and exposed pad design, this IC allows for easy integration into space-constrained designs while enhancing thermal dissipation.
Operating at a high switching frequency of 1.5MHz, the MP1584EN-LF-Z ensures fast and efficient power conversion. Its synchronous buck architecture minimizes power loss, maximizing overall efficiency and reducing energy consumption. With an input voltage range of 4.5V to 28V, the MP1584EN-LF-Z provides versatility in power management. It is a single-channel device, making it ideal for various DC/DC converter applications.
Overall, the MP1584EN-LF-Z is a versatile and high-performance buck switching regulator IC. Its adjustable output voltage, high efficiency, and ability to handle high current make it suitable for diverse applications. Whether in consumer electronics or industrial equipment, this IC provides efficient power conversion, enhanced thermal management, and improved system reliability.
Features
- Adjustable output voltage: The MP1584EN-LF-Z offers an adjustable output voltage ranging from 0.8V to 25V, providing flexibility in power management.
- High output current: It can deliver up to 3A of continuous output current, making it suitable for power-hungry applications.
- Compact size and exposed pad design: The SOP8 package and exposed pad design allow for easy integration into space-constrained designs while enhancing thermal dissipation.
- High switching frequency: Operating at a high switching frequency of 1.5MHz, the MP1584EN-LF-Z ensures fast and efficient power conversion.
- Synchronous buck architecture: The synchronous buck architecture minimizes power loss, maximizing overall efficiency and reducing energy consumption.
- Wide input voltage range: With an input voltage range of 4.5V to 28V, the MP1584EN-LF-Z provides versatility in power management.
Specifications
Applications
- Consumer electronics: It can be used in various consumer electronic devices such as smartphones, tablets, portable media players, and digital cameras to provide efficient power conversion.
- Industrial equipment: This IC is suitable for industrial equipment that requires stable and efficient power supply, such as motor drives, robotics, and automation systems.
- Communication systems: It can be used in communication systems like routers, switches, and base stations to ensure reliable and efficient power conversion.
- Automotive applications: It can be utilized in automotive applications such as infotainment systems, GPS navigation devices, and LED lighting, providing stable and efficient power supply.
- LED lighting: The MP1584EN-LF-Z’s high efficiency and adjustable output voltage make it ideal for LED lighting applications, enabling precise control of brightness and power consumption.
- Battery charging: This IC can be used in battery charging circuits for various applications, ensuring efficient and regulated charging of batteries.
Datasheet Download: MP1584EN-LF-Z Datasheet

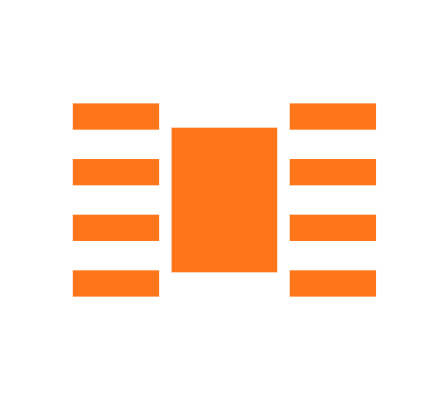

ECAD Model: PCB Symbol and Footprint
