MSP430F5418AIPNR
Part Number: MSP430F5418AIPNR
Manufacturer/Brand: Texas Instruments
Description: 25-MHz MCU with 128-KB Flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer, HW multiplier
Product Category: Integrated Circuits (ICs), Embedded, Microcontrollers, 16-bit Microcontrollers
Package/Case: LQFP80
Stock Condition: 4,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $6.40 |
10+ | $5.78 |
100+ | $4.79 |
500+ | $4.17 |
1000+ | $3.63 |
MSP430F5418AIPNR from Texas Instruments
The Texas Instruments MSP430F5418AIPNR is a powerful 16-bit RISC microcontroller with a clock speed of 25MHz. It features 128KB of flash memory and 16KB of SRAM, making it a great choice for applications that demand high-speed processing and storage capacity. Its 12-bit ADC, DMA, UART/SPI/I2C, timer, and hardware multiplier give it a broad range of capabilities, allowing it to handle a variety of tasks.
This versatile microcontroller is housed in an 80-pin LQFP package and can operate on a voltage range of 1.8V to 3.6VDC, providing flexibility and ease of use for designers. Its robust features and reliable performance make it an excellent choice for a wide range of embedded applications.
Whether it’s for building automation, security systems, energy harvesting systems, human-machine interfaces, or wireless sensor networks, the MSP430F5418AIPNR provides reliable performance and low power consumption that are critical to these applications.
Specifications
Product Attribute | Attribute Value |
---|---|
Texas Instruments | |
Product Category: | 16-bit Microcontrollers – MCU |
RoHS: | Compliant |
MSP430 | |
128 kB | |
16 kB | |
LQFP-80 | |
25 MHz | |
12 bit | |
67 I/O | |
1.8 V | |
3.6 V | |
SMD/SMT | |
16 bit | |
– 40 C | |
+ 85 C | |
MSP430F5418A | |
Reel | |
Cut Tape | |
MouseReel | |
Brand: | Texas Instruments |
Data RAM Type: | SRAM |
Interface Type: | I2C, IrDA, JTAG, SPI, UART |
Moisture Sensitive: | Yes |
Number of ADC Channels: | 16 Channel |
Number of Timers/Counters: | 3 Timer |
Processor Series: | Series 5 |
Product Type: | 16-bit Microcontrollers – MCU |
Program Memory Type: | Flash |
Subcategory: | Microcontrollers – MCU |
Tradename: | MSP430 |
Watchdog Timers: | No Watchdog Timer |
Unit Weight: | 0.022575 oz |
Features and Applications
Here are the key features and applications of the Texas Instruments MSP430F5418AIPNR:
Key Features:
- 16-bit RISC microcontroller
- Clock speed of 25MHz
- 128KB flash memory
- 16KB SRAM
- 12-bit ADC
- DMA, UART/SPI/I2C interface
- Hardware multiplier
- Operating voltage range of 1.8V to 3.6VDC
- 80-pin LQFP package
- Low power consumption
Applications:
- Industrial automation
- Metering systems
- Medical devices
- Consumer electronics
- Portable instruments
- Human-machine interfaces
- Building automation
- Security systems
- Energy harvesting systems
- Wireless sensor networks
Datasheet Download: MSP430F5418AIPNR Datasheet

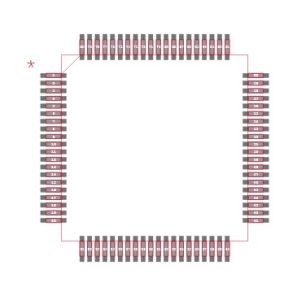

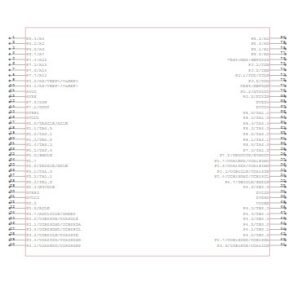

ECAD Model: PCB Symbol and Footprint
