PC817X3NSZW
Part Number: PC817X3NSZW
Manufacturer/Brand: SHARP
Description: Versatile optocoupler, 80V Maximum voltage rating, 5000V Isolation voltage, 50mA Current, DIP4 Package.
Product Category: Transistor, Photovoltaic Output Photocouplers
Package/Case: DIP4
Stock Condition: 5,000, Can Ship in 48 Hours
Minimum: 1 Multiple: 1 Price For: Each
Quantity | Price |
---|---|
1+ | $0.79 |
10+ | $0.518 |
100+ | $0.342 |
1000+ | $0.264 |
2500+ | $0.242 |
About PC817X3NSZW
PC817X3NSZW is a versatile optocoupler designed to provide reliable and efficient signal transmission between different electrical circuits. This compact device features a single-channel configuration, allowing for seamless DC input to transistor DC output communication. With an impressive maximum voltage rating of 80V and isolation voltage of 5000V, the PC817X3NSZW ensures robust performance even in demanding applications.
Equipped with a phototransistor output, this optocoupler offers excellent switching capabilities, making it suitable for various industrial and consumer electronics projects. It can handle a current of up to 50mA and exhibits low forward voltage drops of only 0.1V at 1mA and 20mA, guaranteeing efficient power transfer while minimizing energy loss. The PC817X3NSZW comes in a standard DIP4 package, which provides ease of integration into existing circuit designs.
Its reliable operation, combined with the ability to isolate and protect sensitive components from high voltages, makes it an ideal choice for a wide range of applications, including motor control systems, power supplies, and digital logic interfaces. With a voltage supply range of 6V and a low threshold input current of 1.2V DC, this optocoupler provides compatibility and flexibility for various electronic setups.
Features
- Single-channel configuration for seamless DC input to transistor DC output communication.
- Impressive maximum voltage rating of 80V and isolation voltage of 5000V for robust performance in demanding applications.
- Equipped with a phototransistor output, providing excellent switching capabilities.
- Can handle a current of up to 50mA, ensuring efficient power transfer.
- Exhibits low forward voltage drops of only 0.1V at 1mA and 20mA, minimizing energy loss.
- Comes in a standard DIP4 package, allowing for easy integration into existing circuit designs.
- Reliable operation with the ability to isolate and protect sensitive components from high voltages.
- ROHS compliance ensures adherence to environmental regulations.
- Voltage supply range of 6V and a low threshold input current of 1.2V DC, providing compatibility and flexibility.
Specifications
Product Attribute | Attribute Value |
---|---|
Sharp | |
Fall time
|
3us@2mA,100Ω |
Input voltage type | DC |
Output Type | Phototransistor |
Output Current | 50mA |
Number of Outputs | 1 |
Forward Voltage | 1.2V |
Collector-Emitter Saturation Voltage | 0.1V@1mA,20mA |
Reverse Voltage | 6V |
Rise time | 4us@2mA,100Ω |
Operating Temperature | -30℃~+100℃ |
Receiving End Voltage | 80V |
Isolation Voltage(rms) | 5000V |
Applications
- Motor control systems: The optocoupler can be used to provide reliable signal transmission between control circuits and motor drivers, ensuring precise control and protection against high voltages.
- Power supplies: It can be employed to isolate sensitive components from the main power supply, preventing voltage spikes and enhancing safety.
- Digital logic interfaces: The optocoupler enables secure communication between different digital logic circuits, facilitating data transmission and reducing the risk of electrical interference.
- Industrial automation: With its robust performance and ability to handle high currents, the optocoupler is suitable for various automation applications, such as PLC (Programmable Logic Controller) interfaces and industrial control systems.
- Consumer electronics: The compact size and efficient power transfer make the optocoupler ideal for consumer electronic devices, including audio equipment, LED displays, and home automation systems.
Datasheet Download: PC817X3NSZW Datasheet

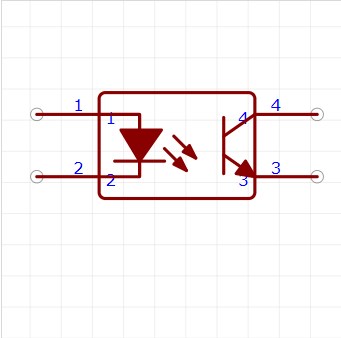

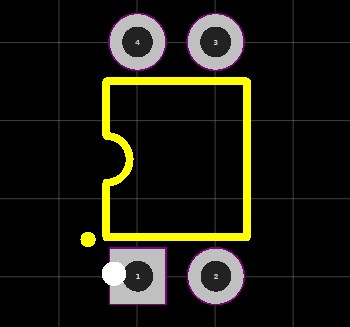

ECAD Model: PCB Symbol and Footprint
